ELECTRONIC DEVICE AND METHOD OF EXTENDING READING DISTANCE

Abstract

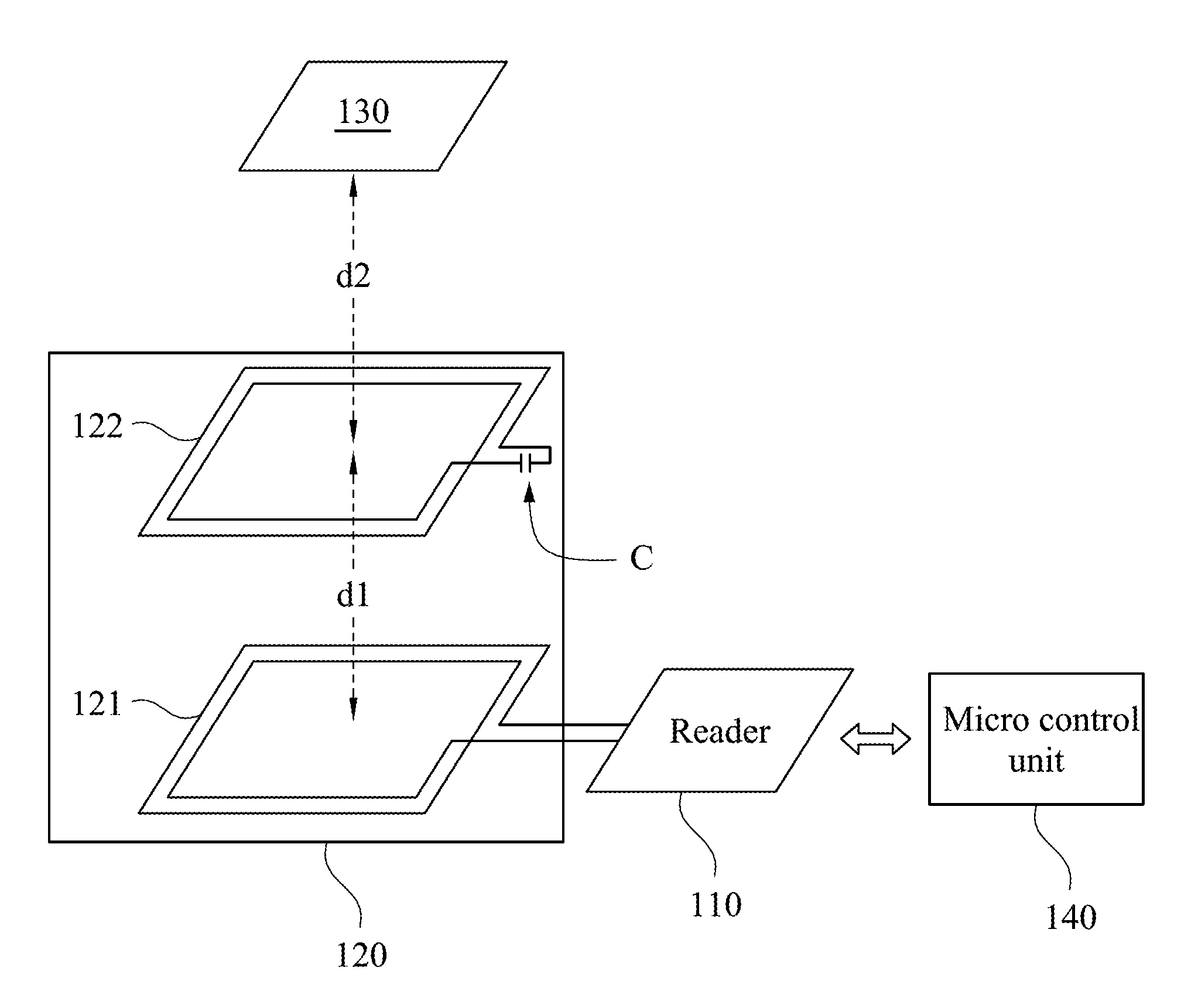

An electronic device includes a reader and a plurality of first coil units. The reader is configured to read at least one wireless signal. The reader is connected to a first coil unit of the first coil units to read the wireless signal in an original reading distance. Other first coil unit(s) of the first coil units is separately arranged in an order started from the first coil unit. Spacing between any two of the first coil units is lower than or equal to the original reading distance. The first coil units are configured to generate magnetic coupling with an adjacent first coil unit started from the first coil unit to extend the original reading distance as a first extended reading distance and adjust a direction of the first extended reading distance.

Original Text (This is the original text for your reference.)

An electronic device includes a reader and a plurality of first coil units. The reader is configured to read at least one wireless signal. The reader is connected to a first coil unit of the first coil units to read the wireless signal in an original reading distance. Other first coil unit(s) of the first coil units is separately arranged in an order started from the first coil unit. Spacing between any two of the first coil units is lower than or equal to the original reading distance. The first coil units are configured to generate magnetic coupling with an adjacent first coil unit started from the first coil unit to extend the original reading distance as a first extended reading distance and adjust a direction of the first extended reading distance.

Inventor: Mu-Feng KU

Application number: US15859720

Publication number: US20180122569A1

Filing date: 2018-01-01

Publication date: 2020-05-26

Type of Patent: A1

Source: IKCEST
